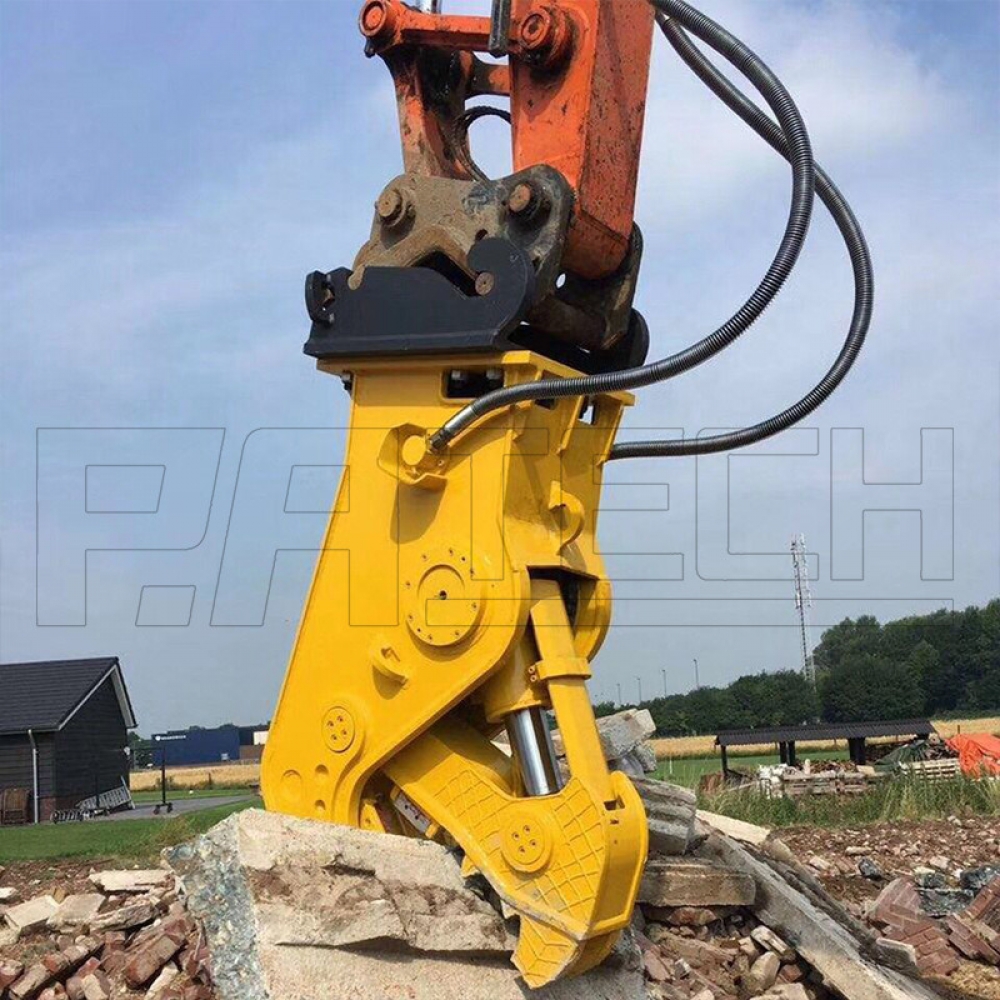

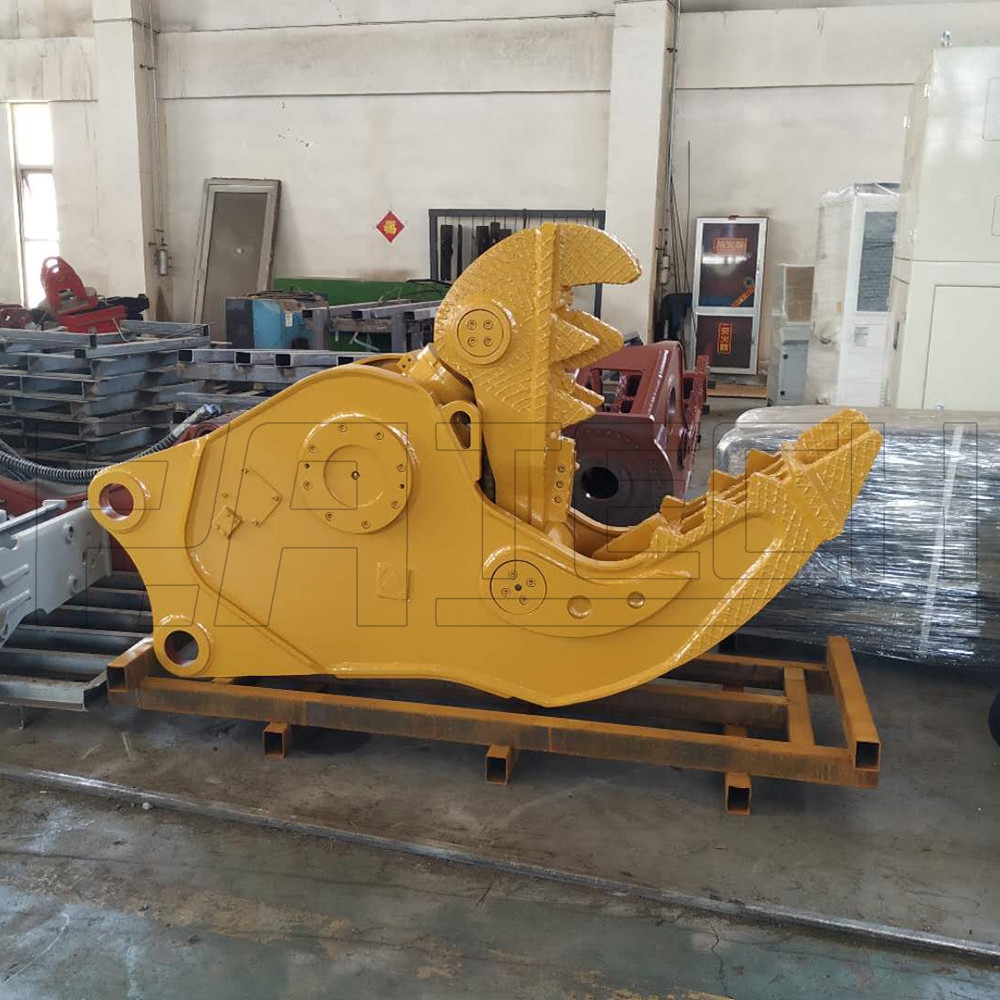

CAT Excavator Attachments L2000mm Hydraulic Concrete Pulverizer

Basic Information:
Place of Origin: CHINA
Brand Name: PA TECH
Certification: CE
Model Number: JXC04, JXC06, JXC08, JXC10...
Minimum Order Quantity: 1 set
Price: USD4600-USD12300
Packaging Details: Standard exporting package
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200-500 sets
Product DescriptionFactory
Keyword: Hydraulic Pulverizer, Crushing Forceps,Scrap Shear Concrete Crusher Application: Dismantling Of Waste Vehicles
Brand: PA Tech Type: JXC04, JXC06,JXC08,JXC10...
OEM: Available After-sales Service: Field Installation, Commissioning And Training, Field Installation
Video Outgoing-installation: Available Machinery Test Report: Available
Warranty: 6 Months Suitable For Excavator: 6-30Ton
Max. Crushing Force: 83-225T
High Light:

L2000mm hydraulic concrete pulverizer for excavator

CAT hydraulic concrete pulverizer for excavator

W660mm excavator pulveriser


Excavator Concrete Pulverizer With Durable Design, High Work Efficiency



Description of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:

The hydraulic pulverizer consists of an upper frame, an upper jaw, a shell, and an oil cylinder. The upper jaw is composed of jaw teeth, blades and lower jaw teeth. The external hydraulic system provides oil pressure for the hydraulic cylinder, so that the upper jaw and the fixed jaw of the hydraulic pulverizer can be opened and closed to achieve the effect of crushing.



Application of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:

1- Hydraulic pulverizer, Excavator hydraulic crushing forceps are widely used in the demolition of buildings, factories, houses and other buildings;

2- It is also called demolition excavator shear, and it could also be used for concrete crushing & recycling, steel recycling, rescue &relief operations, etc ..



Features of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:

1. Secondary breakage of concrete and separation of steel bar and concrete.
2. Unique jaw tooth layout design, double-layer wear-resistant protection, thyssenkrupp XAR400 wear resistance steel.
3. The structure is optimized by load design, balancing the opening size and breaking force.



Product Parameters of Crushing forceps, Hydraulic Pulverizer, Shear Crusher:

Model Unit JXC04 JXC06 JXC08 JXC10
Product Weight kg 660 1350 1750 2750
Max. Opening mm 577 730 900 1015
Length mm 1720 2000 2150 2374
Width mm 658 660 706 860
Max. Crushing Force ton 83 105 165 225
Max. Shear Force ton 126 165 210 305
Blade Length mm 120 150 180 200
Drive Hydraulic kg/cm² 230 300 320 380
Adaptor Drivers kg 6-12 12-18 18-26 26-30



Product Application of Crushing forceps, Hydraulic Pulverizer, Shear Crusher


Our Service:

The warranty for our excavator attachments is six months. And, clients could enjoy our on-line consultation and answering service. All our excavator attachments could be customized, OEM is available. As a manufacturer who have strong strong capacity, we usually could arrange delivery for our excavator attachments within 15 days ( delivery can be within one week for cargo that have stock).


If you have any question or want to know more about our excavator attachments,please feel free to send aninquiry to us!We will do the best to help you!

Factory Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear
